AInteractableActor Class Reference

#include <InteractableActor.h>

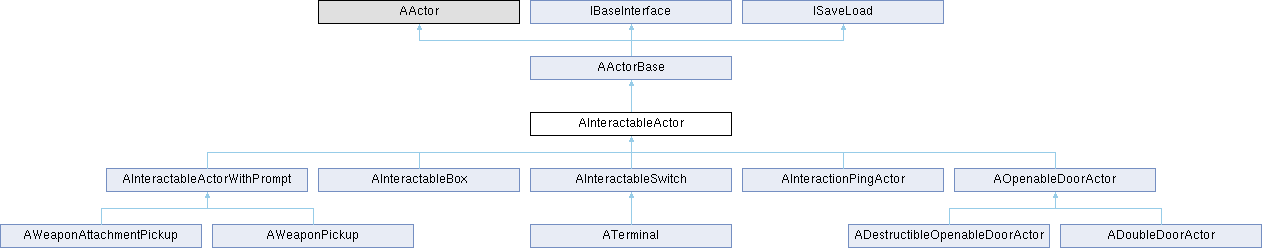

Inheritance diagram for AInteractableActor:

Public Member Functions
	AInteractableActor ()
virtual void	ReceiveStartFocus (AActor *Caller)
virtual void	ReceiveEndFocus (AActor *Caller)
virtual void	ReceiveOnInteract (AActor *Caller, const EInteractionType InteractionType)
virtual void	ReceiveOnEndInteract (AActor *Caller)
virtual void	ReceiveOnOverlap (AActor *Caller)
virtual void	ReceiveOnEndOverlap (AActor *Caller)
virtual void	ReceiveToggleSwitch (AActor *Caller, const bool bOn)
Public Member Functions inherited from AActorBase
	AActorBase ()
virtual bool	SaveGame () override
virtual bool	LoadGame () override
void	SetGravityEnabledEvent (const bool bValue)

Protected Member Functions
virtual void	BeginPlay () override
virtual void	Tick (float DeltaTime) override
virtual void	SetMeshOutline (const bool bValue)
Protected Member Functions inherited from AActorBase
void	LogDebugError (const FString &Message) const
void	LogDebugError (const FString &Message, const int32 Value) const
void	LogDebugError (const FString &Message, const float Value) const
void	LogDebugWarning (const FString &Message) const
void	LogDebugWarning (const FString &Message, const int32 Value) const
void	LogDebugWarning (const FString &Message, const float Value) const
void	LogDebugMessage (const FString &Message, const bool bWarning=false, const bool bError=false) const
void	LogDebugMessage (const FString &Message, const int32 Value, const bool bWarning=false, const bool bError=false) const
void	LogDebugMessage (const FString &Message, const float Value, const bool bWarning=false, const bool bError=false) const
void	LogDebugMessage (const FString &Message, const bool bValue, const bool bWarning, const bool bError) const
void	LogOnScreenMessage (const int32 Key, const FString &Message, FColor Color=FColor::Green) const
void	SetCategoryName (const FLogCategoryBase &Category)

Protected Attributes
class UInteractableActorComponent *	InteractableActorComponent
class UAudioReactionComponent *	AudioReactionComponent
class UAIPerceptionStimuliSourceComponent *	PerceptionStimuliComponent
Protected Attributes inherited from AActorBase
FString	DisplayName = "Display Name"
bool	bDebuggingMode = false

Constructor & Destructor Documentation

AInteractableActor()

AInteractableActor::AInteractableActor

(

)

{
    PrimaryActorTick.bCanEverTick = true;

    AudioReactionComponent = CreateDefaultSubobject<UAudioReactionComponent>("Audio Reaction");

    InteractableActorComponent = CreateDefaultSubobject<UInteractableActorComponent>(TEXT("Interactable Actor Component"));
    InteractableActorComponent->OnInteractDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveOnInteract);
    InteractableActorComponent->OnEndInteractDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveOnEndInteract);
    InteractableActorComponent->OnStartFocusDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveStartFocus);
    InteractableActorComponent->OnEndFocusDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveEndFocus);
    InteractableActorComponent->OnToggleSwitchDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveToggleSwitch);
    InteractableActorComponent->OnOverlapDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveOnOverlap);
    InteractableActorComponent->OnEndOverlapDelegate.AddUniqueDynamic(this, &AInteractableActor::ReceiveOnEndOverlap);
    // InteractableActorComponent->OnInteractionDataUpdated.AddUniqueDynamic(this, &AInteractableActor::InteractionDataUpdated);
    InteractableActorComponent->bPickupOnOverlap = false;
    InteractableActorComponent->InteractionData = FInteractionData();


    PerceptionStimuliComponent = CreateDefaultSubobject<UAIPerceptionStimuliSourceComponent>("Perception Stimuli");
    PerceptionStimuliComponent->RegisterForSense(UAISenseConfig_Sight::StaticClass());
#if WITH_EDITOR
    bDebuggingMode = true;
#endif
    SetCategoryName(LogInteractableActor);
}

Member Function Documentation

BeginPlay()

void AInteractableActor::BeginPlay ( )

overrideprotectedvirtual

Reimplemented from AActorBase.

Reimplemented in ADoubleDoorActor, AInteractableActorWithPrompt, AInteractableBox, AInteractableSwitch, AInteractionPingActor, AOpenableDoorActor, ATerminal, AWeaponAttachmentPickup, and AWeaponPickup.

{
    Super::BeginPlay();
    PerceptionStimuliComponent->RegisterWithPerceptionSystem();
}

ReceiveEndFocus()

void AInteractableActor::ReceiveEndFocus ( AActor * Caller )

virtual

Reimplemented in AInteractableBox, and ATerminal.

{
}

ReceiveOnEndInteract()

void AInteractableActor::ReceiveOnEndInteract ( AActor * Caller )

virtual

{
}

ReceiveOnEndOverlap()

void AInteractableActor::ReceiveOnEndOverlap ( AActor * Caller )

virtual

Reimplemented in ATerminal.

{
}

ReceiveOnInteract()

void AInteractableActor::ReceiveOnInteract ( AActor * Caller, const EInteractionType InteractionType )

virtual

Reimplemented in AInteractableBox, AInteractableSwitch, AInteractionPingActor, AOpenableDoorActor, and ATerminal.

{
    const IInteractionInterface* BaseCaller = UInteractionBPLib::GetInteractionFromComponent(Caller);
    if(BaseCaller != nullptr)
    {
        BaseCaller->InteractionDataUpdated();
    }
}

ReceiveOnOverlap()

void AInteractableActor::ReceiveOnOverlap ( AActor * Caller )

virtual

Reimplemented in AInteractionPingActor, and ATerminal.

{
}

ReceiveStartFocus()

void AInteractableActor::ReceiveStartFocus ( AActor * Caller )

virtual

Reimplemented in AInteractableBox, and ATerminal.

{
}

ReceiveToggleSwitch()

void AInteractableActor::ReceiveToggleSwitch ( AActor * Caller, const bool bOn )

virtual

Reimplemented in AInteractableBox, AInteractableSwitch, and AOpenableDoorActor.

{
}

SetMeshOutline()

void AInteractableActor::SetMeshOutline ( const bool bValue )

protectedvirtual

{
    if(RootComponent.Get() != nullptr)
    {
        UStaticMeshComponent* StaticMeshComponent = Cast<UStaticMeshComponent>(RootComponent.Get());
        if(StaticMeshComponent != nullptr)
        {
            if(StaticMeshComponent != nullptr)
            {
                StaticMeshComponent->SetRenderCustomDepth(bValue);
            }
        }
        USkeletalMeshComponent* SkeletalMeshComponent = Cast<USkeletalMeshComponent>(RootComponent.Get());
        if(SkeletalMeshComponent != nullptr)
        {
            if(SkeletalMeshComponent != nullptr)
            {
                SkeletalMeshComponent->SetRenderCustomDepth(bValue);
            }
        }
    }
}

Tick()

void AInteractableActor::Tick ( float DeltaTime )

overrideprotectedvirtual

{
    Super::Tick(DeltaTime);

}

Member Data Documentation

AudioReactionComponent

class UAudioReactionComponent* AInteractableActor::AudioReactionComponent

protected

InteractableActorComponent

class UInteractableActorComponent* AInteractableActor::InteractableActorComponent

protected

PerceptionStimuliComponent

class UAIPerceptionStimuliSourceComponent* AInteractableActor::PerceptionStimuliComponent

protected

---

The documentation for this class was generated from the following files:

• T:/Unreal/Unreal Projects/SpaceAdventure52/SpaceAdventure/Plugins/Interaction/Source/Interaction/Public/Actors/InteractableActor.h
• T:/Unreal/Unreal Projects/SpaceAdventure52/SpaceAdventure/Plugins/Interaction/Source/Interaction/Private/Actors/InteractableActor.cpp
