AInteractionPingActor Class Reference

#include <InteractionPingActor.h>

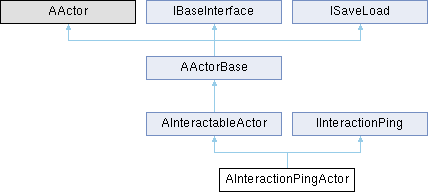

Inheritance diagram for AInteractionPingActor:

Public Member Functions
	AInteractionPingActor ()
virtual void	SetPingData (const FPingData &Ping, AActor *Sender) override
Public Member Functions inherited from AInteractableActor
	AInteractableActor ()
virtual void	ReceiveStartFocus (AActor *Caller)
virtual void	ReceiveEndFocus (AActor *Caller)
virtual void	ReceiveOnEndInteract (AActor *Caller)
virtual void	ReceiveOnEndOverlap (AActor *Caller)
virtual void	ReceiveToggleSwitch (AActor *Caller, const bool bOn)
Public Member Functions inherited from AActorBase
	AActorBase ()
virtual bool	SaveGame () override
virtual bool	LoadGame () override
void	SetGravityEnabledEvent (const bool bValue)

Protected Member Functions
virtual void	BeginPlay () override
virtual void	ReceiveOnInteract (AActor *Caller, const EInteractionType InteractionType) override
virtual void	ReceiveOnOverlap (AActor *Caller) override
Protected Member Functions inherited from AInteractableActor
virtual void	Tick (float DeltaTime) override
virtual void	SetMeshOutline (const bool bValue)
Protected Member Functions inherited from AActorBase
void	LogDebugError (const FString &Message) const
void	LogDebugError (const FString &Message, const int32 Value) const
void	LogDebugError (const FString &Message, const float Value) const
void	LogDebugWarning (const FString &Message) const
void	LogDebugWarning (const FString &Message, const int32 Value) const
void	LogDebugWarning (const FString &Message, const float Value) const
void	LogDebugMessage (const FString &Message, const bool bWarning=false, const bool bError=false) const
void	LogDebugMessage (const FString &Message, const int32 Value, const bool bWarning=false, const bool bError=false) const
void	LogDebugMessage (const FString &Message, const float Value, const bool bWarning=false, const bool bError=false) const
void	LogDebugMessage (const FString &Message, const bool bValue, const bool bWarning, const bool bError) const
void	LogOnScreenMessage (const int32 Key, const FString &Message, FColor Color=FColor::Green) const
void	SetCategoryName (const FLogCategoryBase &Category)

Protected Attributes
class USceneComponent *	SceneComponent
class UCapsuleComponent *	CapsuleComponent
class UScreenFacingWidgetComponent *	ScreenFacingWidgetComponent
UInteractionPingWidget *	InteractionPingWidget
AActor *	SenderActor = nullptr
Protected Attributes inherited from AInteractableActor
class UInteractableActorComponent *	InteractableActorComponent
class UAudioReactionComponent *	AudioReactionComponent
class UAIPerceptionStimuliSourceComponent *	PerceptionStimuliComponent
Protected Attributes inherited from AActorBase
FString	DisplayName = "Display Name"
bool	bDebuggingMode = false

Private Attributes
TSubclassOf< UUserWidget >	PingWidgetClass

Constructor & Destructor Documentation

AInteractionPingActor()

AInteractionPingActor::AInteractionPingActor

(

)

{
    PrimaryActorTick.bCanEverTick = false;
    const ConstructorHelpers::FClassFinder<UUserWidget> InteractionPingBP(TEXT("/Interaction/Widgets/WBP_InteractionPing"));
    if (!ensure(InteractionPingBP.Class != nullptr)) return;
    PingWidgetClass = InteractionPingBP.Class;

    SceneComponent = CreateDefaultSubobject<USceneComponent>(TEXT("Scene Component"));
    RootComponent = SceneComponent;

    ScreenFacingWidgetComponent = CreateDefaultSubobject<UScreenFacingWidgetComponent>(TEXT("Screen Facing Widget"));
    ScreenFacingWidgetComponent->SetWidgetClass(PingWidgetClass);
    ScreenFacingWidgetComponent->SetupAttachment(SceneComponent);

    CapsuleComponent = CreateDefaultSubobject<UCapsuleComponent>(TEXT("Capsule"));
    CapsuleComponent->SetupAttachment(SceneComponent);

    bReplicates = true;
}

Member Function Documentation

BeginPlay()

void AInteractionPingActor::BeginPlay ( )

overrideprotectedvirtual

Reimplemented from AInteractableActor.

{
    Super::BeginPlay();
    InteractionPingWidget = Cast<UInteractionPingWidget>(ScreenFacingWidgetComponent->GetUserWidgetObject());
    if(InteractionPingWidget == nullptr)
    {
        UE_LOG(LogTemp, Warning, TEXT("Interaction Widget NULL in Interaction Ping Actor"));
        ScreenFacingWidgetComponent->Deactivate();
        ScreenFacingWidgetComponent->DestroyComponent();
        Destroy();
    }
    else
    {
        InteractionPingWidget->ActorConstruct();
    }
}

ReceiveOnInteract()

void AInteractionPingActor::ReceiveOnInteract ( AActor * Caller, const EInteractionType InteractionType )

overrideprotectedvirtual

Reimplemented from AInteractableActor.

{
    Super::ReceiveOnInteract(Caller, InteractionType);
    if(InteractionType == EInteractionType::Delete)
    {
        Destroy();
    }
    // if(SelectedInteraction == 1)
    // {
    //  Destroy();
    // }
}

ReceiveOnOverlap()

void AInteractionPingActor::ReceiveOnOverlap ( AActor * Caller )

overrideprotectedvirtual

Reimplemented from AInteractableActor.

{
    Super::ReceiveOnOverlap(Caller);
    if(SenderActor == Caller)
    {
        Destroy();
    }
}

SetPingData()

void AInteractionPingActor::SetPingData ( const FPingData & Ping, AActor * Sender )

overridevirtual

Implements IInteractionPing.

{
    if(InteractionPingWidget != nullptr)
    {
        InteractionPingWidget->SetPingData(Ping, Sender);
        InteractionPingWidget->SetPingActor(this);
    }
}

Member Data Documentation

CapsuleComponent

class UCapsuleComponent* AInteractionPingActor::CapsuleComponent

protected

InteractionPingWidget

UInteractionPingWidget* AInteractionPingActor::InteractionPingWidget

protected

PingWidgetClass

TSubclassOf<UUserWidget> AInteractionPingActor::PingWidgetClass

private

SceneComponent

class USceneComponent* AInteractionPingActor::SceneComponent

protected

ScreenFacingWidgetComponent

class UScreenFacingWidgetComponent* AInteractionPingActor::ScreenFacingWidgetComponent

protected

SenderActor

AActor* AInteractionPingActor::SenderActor = nullptr

protected

---

The documentation for this class was generated from the following files:

• T:/Unreal/Unreal Projects/SpaceAdventure52/SpaceAdventure/Plugins/Interaction/Source/Interaction/Public/Actors/InteractionPingActor.h
• T:/Unreal/Unreal Projects/SpaceAdventure52/SpaceAdventure/Plugins/Interaction/Source/Interaction/Private/Actors/InteractionPingActor.cpp
