#include <QuestExampleCharacter.h>

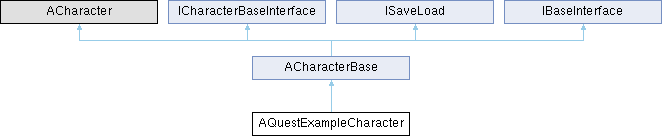

Inheritance diagram for AQuestExampleCharacter:

Public Member Functions
	AQuestExampleCharacter (const FObjectInitializer &ObjectInitializer)

FORCEINLINE class USpringArmComponent *	GetCameraBoom () const

FORCEINLINE class UCameraComponent *	GetFollowCamera () const

virtual void	SetupPlayerInputComponent (class UInputComponent *PlayerInputComponent) override

Public Member Functions inherited from ACharacterBase
	ACharacterBase (const FObjectInitializer &ObjectInitializer)

virtual void	Tick (float DeltaTime) override

virtual bool	SaveGame () override

virtual bool	LoadGame () override

virtual USkeletalMeshComponent *	GetCharacterMesh () const override

virtual UPrimitiveComponent *	GetPrimitiveComponent () override

virtual void	Ragdoll () override

virtual void	RagdollStop () override

virtual float	PlayReplicatedMontage (UAnimMontage *MontageToPlay, const float InPlayRate=1.0f, const EMontagePlayReturnType ReturnValueType=EMontagePlayReturnType::Duration, const float InTimeToStartMontageAt=0.0f, const bool bStopAllMontages=true) override

virtual void	StopReplicatedMontage (const float InBlendOutTime, const UAnimMontage *Montage) override

virtual bool	GetCharacterHealth (float &Health, float &MaxHealth) const override

virtual FCharacterBaseSkills &	GetCharacterSkills () override

virtual bool	GetAudioSocketLocation (const FName &AudioSocket, FVector &Location) const override

virtual USceneComponent *	GetThrowPoint () const override

virtual FCharacterInfo	GetCharacterInfo () const override

virtual void	GetThrowStats (FTransform &OutTransform, FVector &OutThrowForce) const override

virtual void	CharacterModeChanged (const FGameplayTag &NewMode) override

virtual int32	GetStrength () const

virtual int32	GetPerception () const

virtual int32	GetEndurance () const

virtual int32	GetCharisma () const

virtual int32	GetIntelligence () const

virtual int32	GetAgility () const

virtual int32	GetWeaponSkill () const

virtual int32	GetStealth () const

virtual int32	GetLuck () const

virtual int32	GetSkillPoints () const

Protected Member Functions
virtual void	BeginPlay () override

virtual void	OnPawnSpawned () override

void	Move (const FInputActionValue &Value)

void	Look (const FInputActionValue &Value)

Protected Member Functions inherited from ACharacterBase
virtual void	NotifyHit (UPrimitiveComponent MyComp, AActor Other, UPrimitiveComponent *OtherComp, bool bSelfMoved, FVector HitLocation, FVector HitNormal, FVector NormalImpulse, const FHitResult &Hit) override

virtual void	FallOver (const float WaitTime)

void	OnFallOver (const float WaitTime)

virtual void	GetUpFromFall ()

void	OnGetUpFromFall ()

void	OnRep_CharacterDeath ()

IPlayerControllerInterface *	GetPlayerControllerInterface ()

IPlayerStateInterface *	GetPlayerStateInterface ()

void	LogDebugError (const FString &Message) const

void	LogDebugError (const FString &Message, const int32 Value) const

void	LogDebugError (const FString &Message, const float Value) const

void	LogDebugWarning (const FString &Message) const

void	LogDebugWarning (const FString &Message, const int32 Value) const

void	LogDebugWarning (const FString &Message, const float Value) const

void	LogDebugMessage (const FString &Message, const bool bWarning=false, const bool bError=false) const

void	LogDebugMessage (const FString &Message, const int32 Value, const bool bWarning=false, const bool bError=false) const

void	LogDebugMessage (const FString &Message, const float Value, const bool bWarning=false, const bool bError=false) const

void	LogDebugMessage (const FString &Message, const bool bValue, const bool bWarning, const bool bError) const

void	LogOnScreenMessage (const int32 Key, const FString &Message, FColor Color=FColor::Green) const

void	SetCategoryName (const FLogCategoryBase &Category)

Protected Attributes
class USpringArmComponent *	CameraBoom

class UCameraComponent *	FollowCamera

class UInputMappingContext *	DefaultMappingContext

class UInputAction *	JumpAction

class UInputAction *	MoveAction

class UInputAction *	LookAction

Protected Attributes inherited from ACharacterBase
bool	bDebuggingMode = false

FCharacterBaseSkills	CharacterSkills

FCharacterInfo	CharacterInfo

bool	bDead = false

float	PickupThrowIntensity = 500.0f

bool	bCanBePushed = false

float	HitVelocityThreshold = 50.0f

float	HitVelocityMultiplier = 5.0f

float	HitReactionMultiplier = 0.01f

bool	bPushHitReaction = true

bool	bAddMovementInput = true

bool	bAddCharacterMovement = true

float	PushFallVelocityThreshold = 200.0f

float	PushedFallVelocityThreshold = 500.0f

float	PushedFallOverWaitTime = 2.0f

Additional Inherited Members
Public Attributes inherited from ACharacterBase
FOnCharacterDeath	OnCharacterDeath

Constructor & Destructor Documentation

◆ AQuestExampleCharacter()

AQuestExampleCharacter::AQuestExampleCharacter ( const FObjectInitializer & ObjectInitializer )

explicit

    : Super(ObjectInitializer)
{
    // Set this character to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
    PrimaryActorTick.bCanEverTick = true;
    // Set size for collision capsule
    GetCapsuleComponent()->InitCapsuleSize(42.f, 96.0f);

    // Don't rotate when the controller rotates. Let that just affect the camera.
    bUseControllerRotationPitch = false;
    bUseControllerRotationYaw = false;
    bUseControllerRotationRoll = false;

    // Configure character movement
    GetCharacterMovement()->bOrientRotationToMovement = true; // Character moves in the direction of input...
    GetCharacterMovement()->RotationRate = FRotator(0.0f, 500.0f, 0.0f); // ...at this rotation rate

    // Note: For faster iteration times these variables, and many more, can be tweaked in the Character Blueprint
    // instead of recompiling to adjust them
    GetCharacterMovement()->JumpZVelocity = 700.f;
    GetCharacterMovement()->AirControl = 0.35f;
    GetCharacterMovement()->MaxWalkSpeed = 500.f;
    GetCharacterMovement()->MinAnalogWalkSpeed = 20.f;
    GetCharacterMovement()->BrakingDecelerationWalking = 2000.f;

    // Create a camera boom (pulls in towards the player if there is a collision)
    CameraBoom = CreateDefaultSubobject<USpringArmComponent>(TEXT("CameraBoom"));
    CameraBoom->SetupAttachment(RootComponent);
    CameraBoom->TargetArmLength = 400.0f; // The camera follows at this distance behind the character
    CameraBoom->bUsePawnControlRotation = true; // Rotate the arm based on the controller

    // Create a follow camera
    FollowCamera = CreateDefaultSubobject<UCameraComponent>(TEXT("FollowCamera"));
    FollowCamera->SetupAttachment(CameraBoom, USpringArmComponent::SocketName); // Attach the camera to the end of the boom and let the boom adjust to match the controller orientation
    FollowCamera->bUsePawnControlRotation = false; // Camera does not rotate relative to arm

    // Note: The skeletal mesh and anim blueprint references on the Mesh component (inherited from Character)
    // are set in the derived blueprint asset named ThirdPersonCharacter (to avoid direct content references in C++)

}

Member Function Documentation

◆ BeginPlay()

void AQuestExampleCharacter::BeginPlay ( )

overrideprotectedvirtual

Reimplemented from ACharacterBase.

{
    Super::BeginPlay();
    //Add Input Mapping Context
    if (APlayerController* PlayerController = Cast<APlayerController>(Controller))
    {
        if (UEnhancedInputLocalPlayerSubsystem* Subsystem = ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(PlayerController->GetLocalPlayer()))
        {
            Subsystem->AddMappingContext(DefaultMappingContext, 0);
        }
    }
}

◆ GetCameraBoom()

FORCEINLINE class USpringArmComponent * AQuestExampleCharacter::GetCameraBoom ( ) const

inline

Returns CameraBoom subobject

21{ return CameraBoom; }

◆ GetFollowCamera()

FORCEINLINE class UCameraComponent * AQuestExampleCharacter::GetFollowCamera ( ) const

inline

Returns FollowCamera subobject

23{ return FollowCamera; }

◆ Look()

void AQuestExampleCharacter::Look ( const FInputActionValue & Value )

protected

Called for looking input

{
    // input is a Vector2D
    FVector2D LookAxisVector = Value.Get<FVector2D>();

    if (Controller != nullptr)
    {
        // add yaw and pitch input to controller
        AddControllerYawInput(LookAxisVector.X);
        AddControllerPitchInput(LookAxisVector.Y);
    }
}

◆ Move()

void AQuestExampleCharacter::Move ( const FInputActionValue & Value )

protected

Called for movement input

{
    // input is a Vector2D
    FVector2D MovementVector = Value.Get<FVector2D>();

    if (Controller != nullptr)
    {
        // find out which way is forward
        const FRotator Rotation = Controller->GetControlRotation();
        const FRotator YawRotation(0, Rotation.Yaw, 0);

        // get forward vector
        const FVector ForwardDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::X);

        // get right vector
        const FVector RightDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::Y);

        // add movement
        AddMovementInput(ForwardDirection, MovementVector.Y);
        AddMovementInput(RightDirection, MovementVector.X);
    }
}

◆ OnPawnSpawned()

void AQuestExampleCharacter::OnPawnSpawned ( )

overrideprotectedvirtual

Reimplemented from ACharacterBase.

{
    Super::OnPawnSpawned();
    //Add Input Mapping Context
    if (APlayerController* PlayerController = Cast<APlayerController>(Controller))
    {
        if (UEnhancedInputLocalPlayerSubsystem* Subsystem = ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(PlayerController->GetLocalPlayer()))
        {
            Subsystem->AddMappingContext(DefaultMappingContext, 0);
        }
    }
}

◆ SetupPlayerInputComponent()

void AQuestExampleCharacter::SetupPlayerInputComponent ( class UInputComponent * PlayerInputComponent )

overridevirtual

Reimplemented from ACharacterBase.

{
    Super::SetupPlayerInputComponent(PlayerInputComponent);
    // Set up action bindings
    if (UEnhancedInputComponent* EnhancedInputComponent = CastChecked<UEnhancedInputComponent>(PlayerInputComponent)) {

        //Jumping
        EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Triggered, this, &ACharacter::Jump);
        EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Completed, this, &ACharacter::StopJumping);

        //Moving
        EnhancedInputComponent->BindAction(MoveAction, ETriggerEvent::Triggered, this, &AQuestExampleCharacter::Move);

        //Looking
        EnhancedInputComponent->BindAction(LookAction, ETriggerEvent::Triggered, this, &AQuestExampleCharacter::Look);

    }
}

Member Data Documentation

◆ CameraBoom

class USpringArmComponent* AQuestExampleCharacter::CameraBoom

protected

Camera boom positioning the camera behind the character

◆ DefaultMappingContext

class UInputMappingContext* AQuestExampleCharacter::DefaultMappingContext

protected

MappingContext

◆ FollowCamera

class UCameraComponent* AQuestExampleCharacter::FollowCamera

protected

Follow camera

◆ JumpAction

class UInputAction* AQuestExampleCharacter::JumpAction

protected

Jump Input Action

◆ LookAction

class UInputAction* AQuestExampleCharacter::LookAction

protected

Look Input Action

◆ MoveAction

class UInputAction* AQuestExampleCharacter::MoveAction

protected

Move Input Action

The documentation for this class was generated from the following files:

T:/Unreal/Unreal Projects/SpaceAdventure52/SpaceAdventure/Plugins/QuestSystem/Source/QuestSystemExampleContent/Public/Character/QuestExampleCharacter.h
T:/Unreal/Unreal Projects/SpaceAdventure52/SpaceAdventure/Plugins/QuestSystem/Source/QuestSystemExampleContent/Private/Character/QuestExampleCharacter.cpp
